一、概述:
1、 Overview:
丁腈軟電纜、丁腈電纜具有耐寒、柔軟、耐磨、防油等特性,適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器用連接電纜,目前本產品已廣泛應用于冶金、電力、船舶、汽車制造等行業。
Nitrile flexible cables and nitrile cables have characteristics such as cold resistance, softness, wear resistance, and oil resistance. They are suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance and oil resistance at AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing.
適用于交流額定電壓0.6/1kV及以下要求頻繁移動及耐油場合作動力裝置或移動照明的電力傳輸。
Suitable for power transmission of power devices or mobile lighting that require frequent movement and oil resistance with rated AC voltage of 0.6/1kV and below.
二:丁晴軟電纜執行標準:
2: Dingqing flexible cable execution standard:
本產品按Q/LB2003-16設計制造。
This product is designed and manufactured according to Q/LB2003-16.
Q/HHTZH007.1
Q/HHTZH007.1
阻燃性能試驗執行GB12666-90規定
Flame retardant performance test shall comply with GB12666-90 regulations
型 號Model number | 產品名稱product name | |

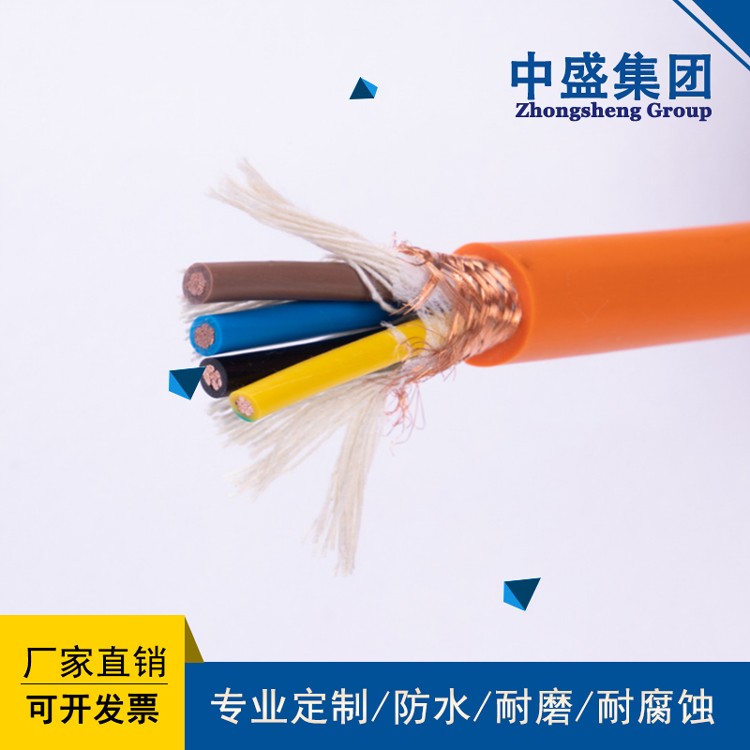

YVFR | 丁腈絕緣和護套電力軟電纜Nitrile insulated and sheathed power flexible cable | |

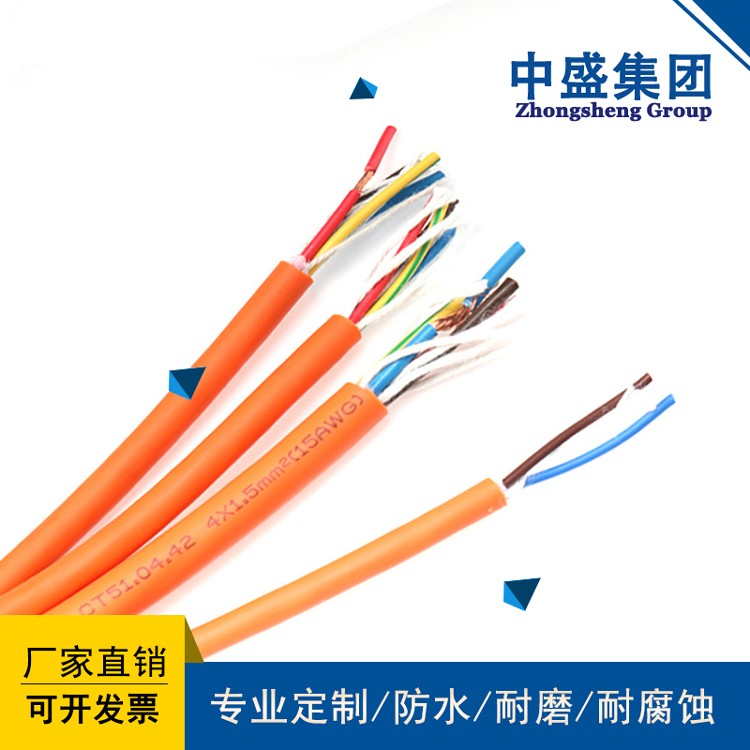

YVFRP | 丁腈絕緣和護套銅絲編織屏蔽電力軟電纜Nitrile insulated and sheathed copper wire braided shielded power flexible cable | |

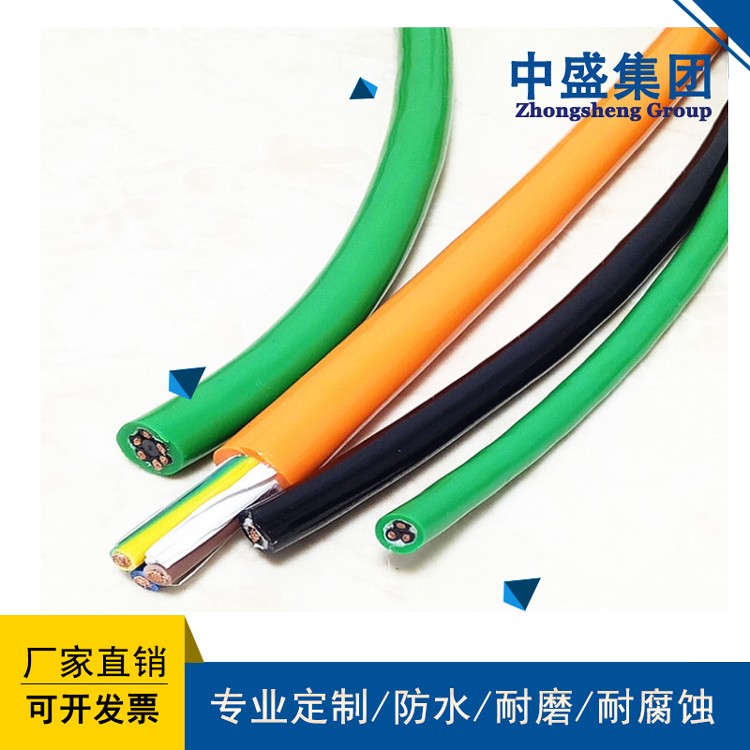

備注:阻燃型電纜型號加ZR,導體線芯中銅絲可以采用鍍錫 Note: For flame-retardant cable models with ZR, the copper wire in the conductor core can be tinned | ||
| 代號和含義Code and meaning | ||
代號code | 代號含義Meaning of code | |
Y | 移動系列Mobile series | |
VF | 丁腈絕緣和護套Nitrile insulation and sheath | |
P | 銅編織屏蔽Copper braided shielding | |
R | 多股絞合體Multi strand twisted structure | |
五、丁晴軟電纜使用特性:
5、 Usage characteristics of Dingqing flexible cable:
1.交流額定電壓:U0/U 0.6/1KV
1. Rated AC voltage: U0/U 0.6/1KV
2.***高工作溫度: 105℃
2. Maximum operating temperature: 105℃
3.***低環境溫度:固定敷設-40℃
3. Minimum ambient temperature: -40 ℃ for fixed installation
4.電纜安裝敷設溫度應不低于-25℃。
4. The temperature for cable installation and laying should not be lower than -25 ℃.
5.電纜允許彎曲半徑:電纜***小為電纜外徑的12倍
5. Allowable bending radius for cables: The minimum allowable bending radius for cables is 12 times the outer diameter of the cable
