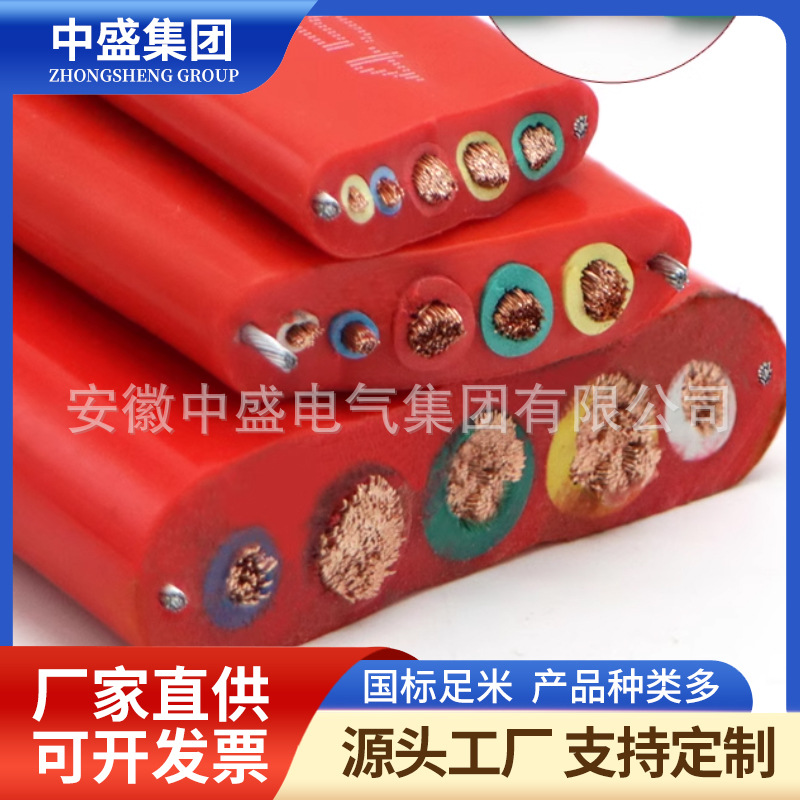

產品名稱：YGCB Silicone Rubber Flat Cable
瀏覽：
添加時間：2025-03-27 17:03:58
推薦度：

介紹：

一、硅橡膠扁電纜特點及用途：

1、 Characteristics and Applications of Silicone Rubber Flat Cable:

二、硅橡膠扁電纜采用硅橡膠作絕緣或護套材料，由于硅橡膠本身具有耐高溫、耐寒、柔軟、耐磨、防腐等特性，因此該電纜高溫環境下電氣性能穩定，抗老化性能好，使用壽命長，適合于交流1KV及以下具有抗拉、耐熱、防腐等特殊要求的行車、臺車、傳輸機械等移動設備和電器用動力傳輸線及控制、照明、通訊線路，硅橡膠扁電纜已廣泛應用于冶金、電力、化工、船舶、港口等行業。該電纜具有良好的柔軟度、防水、耐腐蝕、耐壓等優點。工作溫度為-60℃-180℃。

2、 The silicone rubber flat cable uses silicone rubber as the insulation or sheath material. Because silicone rubber itself has the characteristics of high temperature resistance, cold resistance, softness, abrasion resistance, corrosion prevention, etc., the cable has stable electrical performance, good anti-aging performance, and long service life under high temperature environment. It is suitable for mobile equipment such as cranes, trolleys, transmission machinery, and electrical power transmission lines and control, lighting, communication lines with special requirements such as tensile strength, heat resistance, and corrosion resistance at 1KV and below. The silicone rubber flat cable has been widely used in metallurgy, power, chemical, shipping, port and other industries. This cable has the advantages of good flexibility, waterproofing, corrosion resistance, and pressure resistance. The working temperature is -60 ℃ -180 ℃.

二、生產執行標準：Q/TK08.4-2010；

2、 Production execution standards: Q/TK08.4-2010；

三、使用特性：

3、 Usage characteristics:

1、額定電壓：UO/U為0.6/1KV；

1. Rated voltage: UO/U is 0.6/1KV;

2、電纜允許工作溫度范圍：硅橡膠絕緣-60℃— +180℃；氟塑料絕緣-60℃－ +200℃；

2. Allowable working temperature range for cables: silicone rubber insulation -60 ℃ -+180 ℃; Fluoroplastic insulation -60 ℃ -+200 ℃;

3、電纜短路時(zui長持續間不超過5S)電纜導體的zui高溫度不超過250℃；

3. When a cable short circuit occurs (with a maximum duration of 5 seconds), the maximum temperature of the cable conductor should not exceed 250 ℃;

4、電纜敷設溫度應不低于- 20℃；

4. The temperature for cable laying should not be lower than -20 ℃;

5、電纜zui小彎曲半徑為電纜小邊長度的10倍；

5. The minimum bending radius of the cable is 10 times the length of the small edge of the cable;

四、電纜型號及名稱

4、 Cable model and name

型號名稱

Model name

YGCB 銅芯硅橡膠絕緣及護套扁電纜

YGCB copper core silicone rubber insulated and sheathed flat cable

YGCPB 銅芯硅橡膠絕緣及護套編織屏蔽扁電纜

YGCPB copper core silicone rubber insulated and sheathed braided shielded flat cable

YGGB 銅芯硅橡膠絕緣及護套扁平電纜

YGGB copper core silicone rubber insulated and sheathed flat cable

YF46GRB 銅芯氟塑料絕緣硅橡膠護套扁平軟電纜

YF46GRB copper core fluoroplastic insulated silicone rubber sheathed flat flexible cable

YFGRPB 銅芯氟塑料絕緣硅橡膠護套編織屏蔽軟扁電纜

YFGRPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded flexible flat cable

YFGB 銅芯氟塑料絕緣硅橡膠護套扁平電纜

YFGB copper core fluoroplastic insulated silicone rubber sheathed flat cable

HGGB 銅芯硅橡膠絕緣硅橡膠護套扁平電纜

HGGB copper core silicone rubber insulated silicone rubber sheathed flat cable

YGGB-J 銅芯硅橡膠絕緣及護套加鋼絲加強芯硅橡膠扁電纜

YGGB-J copper core silicone rubber insulated and sheathed with steel wire reinforced core silicone rubber flat cable

KGGB 銅芯硅橡膠絕緣及護套扁平電纜

KGGB copper core silicone rubber insulated and sheathed flat cable

KGGPB 銅芯硅橡膠絕緣及護套編織屏蔽扁平電纜

KGGPB copper core silicone rubber insulated and sheathed braided shielded flat cable

KFGB 銅芯氟塑料絕緣硅橡膠護套扁平電纜

KFGB copper core fluoroplastic insulated silicone rubber sheathed flat cable

KFGPB 銅芯氟塑料絕緣硅橡膠護套編織屏蔽扁平電纜

KFGPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded flat cable

KGVPB 銅芯硅橡膠絕緣丁硅聚氯乙烯護套編織屏蔽扁平電纜

KGVPB copper core silicone rubber insulated silicone polyvinyl chloride sheathed braided shielded flat cable

KGGRPB 銅芯硅橡膠絕緣及護套編織屏蔽軟扁平電纜

KGGRPB copper core silicone rubber insulated and sheathed braided shielded soft flat cable

KF46GPB 銅芯氟塑料絕緣硅橡膠護套編織屏蔽扁平電纜

KF46GPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded flat cable

KFGRPB 銅芯氟塑料絕緣硅橡膠護套編織屏蔽扁平電纜

KFGRPB copper core fluoroplastic insulated silicone rubber sheathed braided shielded flat cable

KGGRB 銅芯硅橡膠絕緣及護套扁平電纜

KGGRB copper core silicone rubber insulated and sheathed flat cable

備注：阻燃電纜型號前加ZR，導體線芯中銅絲可以采用鍍錫。

Note: ZR should be added before the flame-retardant cable model, and tin plating can be used for the copper wire in the conductor core.
