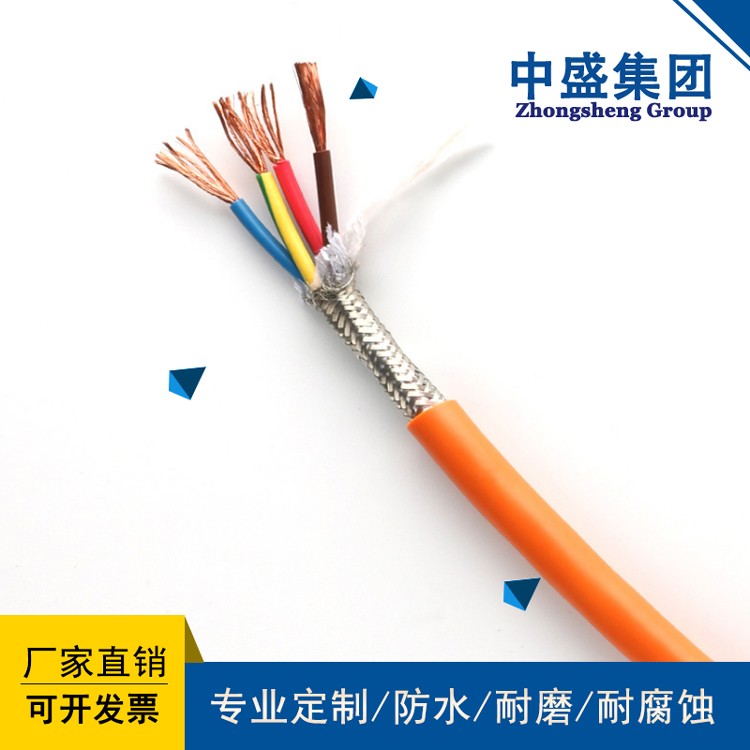

產品名稱：Encoder flexible cable drag chain cable TRVVP
瀏覽：
添加時間：2025-03-25 15:40:14
推薦度：

介紹：

型號：TRVVP

model: TRVVP

連接與控制用柔性電纜,廣泛應用于干燥或潮濕的室內,往復自由彎曲移動無強制拉力的拖鏈系統中。如機床加工設備,物流輸送系統,港口機械,成套設備安裝工程。

Flexible cables for connection and control are widely used in dry or humid indoor environments, as well as in drag chain systems that can freely bend and move back and forth without forced tension. Such as machine tool processing equipment, logistics conveying systems, port machinery, and complete equipment installation projects.

產品特點：

Product features:

可根據客戶要求定做彩色線芯或編碼線芯。

We can customize colored or coded wire cores according to customer requirements.

采用優質PVC混合料,減小了電纜外徑降低對安裝空間的要求。

The use of high-quality PVC mixture reduces the outer diameter of the cable and lowers the requirement for installation space.

整體鍍錫銅絲編織屏蔽,以防止外部高頻電磁干擾。

The overall tin plated copper wire is braided and shielded to prevent external high-frequency electromagnetic interference.

設計使用循環彎曲壽命為500萬次,實際使用已超過600萬次。

The designed service life for cyclic bending is 5 million times, but in actual use it has exceeded 6 million times.

線纜結構：

Cable structure:

導體：采用多股細絞和精絞成束細一級無氧銅絲作導體,符合DIN VDE 0295等級6

Conductor: Multiple strands of fine twisted and precision twisted bundles of first grade oxygen free copper wire are used as conductors, in accordance with DIN VDE 0295 grade 6

絕緣：優質聚氯乙烯混合體顏色：彩色線芯或編碼線芯≥3芯加黃綠芯線

Insulation: High quality polyvinyl chloride mixture Color: Colored core or coded core ≥ 3 cores with yellow green core wire

屏蔽：鍍錫銅絲編織,屏蔽密度≥80%

Shielding: Tin plated copper wire weaving, shielding density ≥ 80%

護套：優質聚氯乙烯混合體顏色：黑色,灰色,橙色

Sheath: High quality polyvinyl chloride mixture Color: Black, Grey, Orange

電氣特性：

Electrical characteristics:

額定電壓：U0/U＜ 0.5mm2 300/300 V

Rated voltage: U0/U＜ 0.5mm2 300/300 V

≥ O.5mm2 300/500 V

測試電壓: U 3000V符合DIN VDE 0281第2部分
