●應用范圍:
● Application scope:
產品適用于機械,冶金,電力,碼頭,室內外倉庫,廠房和貯料場等行業環境。
The product is suitable for industries such as machinery, metallurgy, electricity, docks, indoor and outdoor warehouses, factories, and material storage yards.
行車電纜作為垂直升降機或起重機連接和控制電纜,適用于干燥或潮濕的室內或室外的各種電器安裝。
As a vertical elevator or crane connection and control cable, the overhead cable is suitable for various electrical installations in dry or humid indoor or outdoor environments.

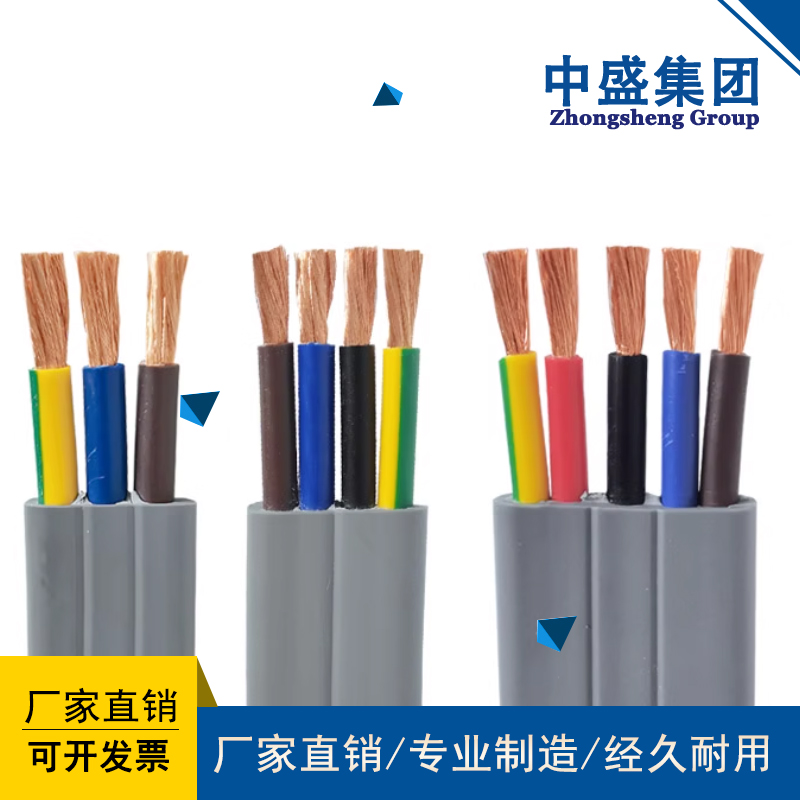

●電纜結構 帶鋼絲
● Cable structure with steel wire
導體:精絞無氧裸銅絲,符合VDE0295CLASS 5標準
Conductor: Fine twisted oxygen free bare copper wire, in accordance with VDE0295CLASS 5 standard
絕緣:PVC絕緣
Insulation: PVC insulation
芯線顏色:數字編號
Core wire color: numerical number
線芯排列方式:一字排列或梅花排列
Wire core arrangement: straight line or plum blossom arrangement
鋼絲:兩根高強度鍍鋅航空鋼絲(可選)
Steel wire: Two high-strength galvanized aviation steel wires (optional)
護套:70℃護套 黑色(RAL9005) 灰色(RAL7001)
Sheath: 70 ℃ Sheath black (RAL9005) Gray (RAL7001)
●產品特性
Product features
1.有較高的抗拉強度;
1. Has high tensile strength;
2.尺寸減少比圓電纜更節省空間
2. Size reduction saves more space than circular cables
3.圓電纜更小的彎曲半徑
3. Smaller bending radius of circular cables
4.將多個扁電纜綁在一起使用
4. Tie multiple flat cables together for use
5.水平排放不會出現電纜絞在一起的現象。
5. Horizontal emissions will not result in cables being twisted together.
6.產品有較高的耐候性,耐油,耐磨、耐彎曲、柔軟等特性;
6. The product has high weather resistance, oil resistance, wear resistance, bending resistance, softness, and other characteristics;
