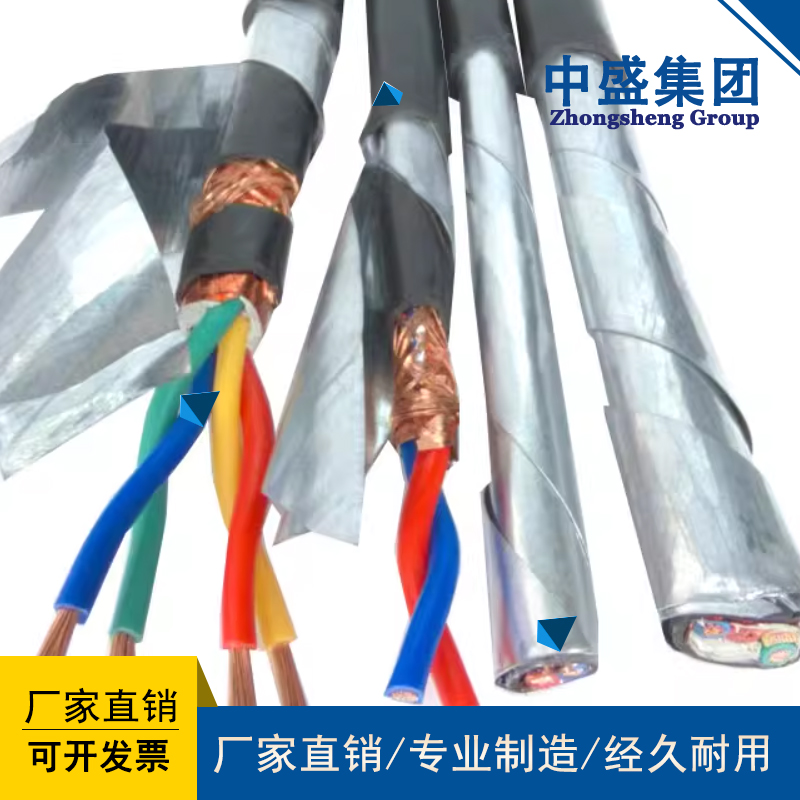

產品名稱：Low smoke and halogen-free cablesWDN-KYJYP23
瀏覽：
添加時間：2024-05-27 10:21:45
推薦度：

介紹：

一.低煙無鹵控制屏蔽電纜適用于額定電壓600/1000V及以下低煙無鹵要求的電力系統或控制及監控回路中。

一、 Low smoke and halogen-free control shielded cables are suitable for power systems or control and monitoring circuits with low smoke and halogen-free requirements for rated voltages of 600/1000V and below.

二.主要技術指標

二、 Main technical indicators

1 導體直流電阻符合GB/T3956的規定。

1. The DC resistance of the conductor complies with the provisions of GB/T3956.

2 90℃絕緣電阻常數不小于3.6M.Ωkm,體積電阻率不小于1012Ω.Cm。

The insulation resistance constant at 2 90 ℃ shall not be less than 3.6M Ω km, and the volume resistivity shall not be less than 1012 Ω Cm。

3 電纜均應經受3.5KV交流電壓試驗，5min絕緣不擊穿。

All three cables should undergo a 3.5KV AC voltage test with insulation without breakdown for 5 minutes.

三.使用特性

3、 Usage characteristics

1 電纜長期允許工作溫度90℃。

The long-term allowable working temperature of the cable is 90 ℃.

2 電纜敷設溫度應不低于0℃，推薦彎曲半徑：

The temperature for cable laying should not be lower than 0 ℃, and the recommended bending radius is:

WDZN-KYJYP無鹵低煙屏蔽控制電纜：有鎧裝和屏蔽結構的電纜其彎曲半徑不小于電纜外徑的12倍。其它結構電纜其彎曲半徑不小于電纜外徑的6倍。

WDZN-KYJYP halogen-free low smoke shielded control cable: The bending radius of cables with armor and shielding structure shall not be less than 12 times the outer diameter of the cable. The bending radius of other structural cables shall not be less than 6 times the outer diameter of the cable.

四.產品型號：

4、 Product model:

型號

model

M稱

M scale

阻燃等

Flame retardant, etc

WDZ-YJY

交聯聚乙烯J緣低煙無鹵聚烯烴護套阻燃電力電纜

Crosslinked polyethylene J-edge low smoke halogen-free polyolefin sheathed flame-retardant power cable

A、B、C

WDZ-YJY23

交聯聚乙烯J緣鋼帶鎧裝低煙無鹵聚烯烴護套阻燃電力電纜

Crosslinked polyethylene J-edge steel strip armored low smoke halogen-free polyolefin sheathed flame-retardant power cable

WDZ-YJY33

交聯聚乙烯J緣細鋼絲鎧裝低煙無鹵聚烯烴護套阻燃電力電纜

Crosslinked polyethylene J-edge fine steel wire armored low smoke halogen-free polyolefin sheathed flame-retardant power cable

WDZ-YJY43

交聯聚乙烯J緣粗鋼絲鎧裝低煙無鹵聚烯烴護套阻燃電力電纜

Crosslinked polyethylene J-edge thick steel wire armored low smoke halogen-free polyolefin sheathed flame-retardant power cable

WDZ-YJ(F)Y

WDZ-YJ (F) Y

低煙無鹵輻照交聯聚烯烴J緣低煙無鹵聚烯烴護套阻燃電力電纜

Low smoke halogen-free irradiation cross-linked polyolefin J-edge low smoke halogen-free polyolefin sheathed flame-retardant power cable

WDZ-YJ(F)Y23

WDZ-YJ (F) Y23

低煙無鹵輻照交聯聚烯烴J緣鋼帶鎧裝低煙無鹵聚烯烴護套阻燃電力電纜

Low smoke and halogen-free irradiation cross-linked polyolefin J-edge steel strip armored low smoke and halogen-free polyolefin sheathed flame-retardant power cable

WDZ-YJ(F)Y33

WDZ-YJ (F) Y33

低煙無鹵輻照交聯聚烯烴J緣細鋼絲鎧裝低煙無鹵聚烯烴護套阻燃電力電纜

Low smoke and halogen-free irradiation cross-linked polyolefin J-edge fine steel wire armored low smoke and halogen-free polyolefin sheathed flame-retardant power cable

WDZ-YJ(F)Y43

WDZ-YJ (F) Y43

低煙無鹵輻照交聯聚烯烴J緣粗鋼絲鎧裝低煙無鹵聚烯烴護套阻燃電力電纜

Low smoke and halogen-free irradiation cross-linked polyolefin J-edge thick steel wire armored low smoke and halogen-free polyolefin sheathed flame-retardant power cable

WDZN-YJY

交聯聚乙烯J緣低煙無鹵聚烯烴護套阻燃耐火電力電纜

Crosslinked polyethylene J-edge low smoke halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable

WDZN-YJY23

交聯聚乙烯J緣鋼帶鎧裝低煙無鹵聚烯烴護套阻燃耐火電力電纜

Crosslinked polyethylene J-edge steel strip armored low smoke halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable

WDZN-YJY33

交聯聚乙烯J緣細鋼絲鎧裝低煙無鹵聚烯烴護套阻燃耐火電力電纜

Crosslinked polyethylene J-edge fine steel wire armored low smoke halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable

WDZN-YJY43

交聯聚乙烯J緣粗鋼絲鎧裝低煙無鹵聚烯烴護套阻燃耐火電力電纜

Crosslinked polyethylene J-edge thick steel wire armored low smoke halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable

WDZN-YJ(F)Y

WDZN-YJ (F) Y

低煙無鹵輻照交聯聚烯烴J緣低煙無鹵聚烯烴護套阻燃耐火電力電纜

Low smoke halogen-free irradiation cross-linked polyolefin J-edge low smoke halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable

WDZN-YJ(F)Y23

WDZN-YJ (F) Y23

低煙無鹵輻照交聯聚烯烴J緣鋼帶鎧裝低煙無鹵聚烯烴護套阻燃耐火電力電纜

Low smoke and halogen-free irradiation cross-linked polyolefin J-edge steel strip armored low smoke and halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable

WDZN-YJ(F)Y33

WDZN-YJ (F) Y33

低煙無鹵輻照交聯聚烯烴J緣細鋼絲鎧裝低煙無鹵聚烯烴護套阻燃耐火電力電纜

Low smoke and halogen-free irradiation cross-linked polyolefin J-edge fine steel wire armored low smoke and halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable

WDZN-YJ(F)Y43

WDZN-YJ (F) Y43

低煙無鹵輻照交聯聚烯烴J緣粗鋼絲鎧裝低煙無鹵聚烯烴護套阻燃耐火電力電纜

Low smoke and halogen-free irradiation cross-linked polyolefin J-edge thick steel wire armored low smoke and halogen-free polyolefin sheathed flame-retardant and fire-resistant power cable
